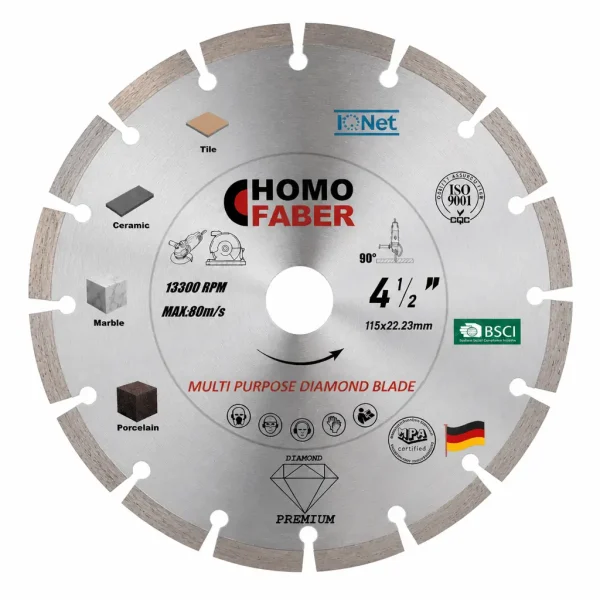

Multi Purpose Diamond Blade
Categories
Multi Purpose Diamond Blade
Multi-Material Cutting Solution:Designed for cutting metal, construction materials, and plastics, reducing the need for frequent blade changes.
Safe Alternative to Traditional Cutting Wheels:Vacuum brazing technology and high-strength steel core provide improved safety with reduced breakage and dust.
Wide Size Range:Available in 75mm–350mm (3″–14″) diameters, compatible with angle grinders, cutting machines, and large equipment.
Multiple Grit & Thickness Options:Available in 30/35 mesh for heavy-duty cutting and 60/70 mesh for fine cutting, with thickness options from 1.0mm–2.2mm.
Customization Services: Supports OEM/ODM orders with customized logos, sizes, and packaging solutions.
Multi Purpose Diamond Blade Key Features
- Vacuum Brazing Technology:
Creates a strong metallurgical bond between diamond particles and metal bond, providing high exposure, sharp cutting, and excellent retention. - High-Strength Steel Core:
Impact-resistant steel core offers superior durability and stability under high-speed heavy-duty cutting. - Constant Cutting Performance:
Non-wearing core design maintains consistent cutting depth, unlike traditional resin cutting wheels. - Multiple Grit Options:
30/35 mesh delivers aggressive heavy-duty cutting, while 60/70 mesh provides smoother finishes with reduced chipping.
Multi Purpose Diamond Blade Technical
Swipe to view table
| Diameter | Bore | Abrasive Width | Base Thickness | Mesh |
| 75mm/100mm/105mm | 16mm/22.23mm | 2.5mm/3.5mm | 1.0mm/1.2mm | 30/35 mesh |
| 115mm/125mm/150mm | 1.6mm/1.8mm | |||
| 180mm/200mm/230mm | 25.40mm/32mm | 2.0mm/2.2mm | 60/70 mesh | |
| 250mm/300mm/350mm |
Multi Purpose Diamond Blade Overview
In construction, rescue, and multi-material cutting applications, frequent blade changes reduce work efficiency. Traditional resin cutting wheels also suffer from breakage, excessive dust, and short service life.
The Multifunctional Vacuum Brazed Diamond Cutting Blade uses advanced vacuum brazing technology to firmly bond high-quality diamond particles onto a high-strength steel core. It delivers fast, clean, and stable cutting performance on metal, reinforced concrete, ceramic, marble, acrylic, PVC, and other materials, reducing replacement costs.
Multi Purpose Diamond Blade Applications
- Metal & Foundry Processing:Suitable for ductile iron, casting finishing, rebar, metal sheets, profiles, and pipes cutting.
- Construction Material Cutting:Designed for cutting reinforced concrete, marble, refractory materials, and masonry.
- Polymer & Composite Materials:Ideal for clean cutting of PMMA acrylic, FRP, PVC pipes, and hard plastics with reduced melting.
Let's Build Your Tool Solution Together
We make working with us simple:
- Get Factory Prices & Peace of Mind:As the direct factory, we give you top quality at the best price, with complete control over production and quality checks.
- Try Before You Buy:We encourage sample orders. See and test the quality for yourself.
- We Make It Yours:Need a custom solution? Our OEM/ODM services are here for you.
- We’re Here for You:Have a question? You’ll hear back from us in under 12 hours. We’re your partner, not just another supplier.
Let’s start a conversation. Tell us your needs, and we’ll provide a quote or sample to prove we’re the right partner for you.
FAQ (Frequently Asked Questions)
A: Traditional resin cutting wheels are easy to break, wear quickly, and generate excessive dust during operation. The vacuum brazed diamond blade uses a high-strength steel core with firmly bonded diamond particles for longer life and stable cutting depth.
It reduces blade replacement frequency and provides a safer, more cost-effective solution for multi-material cutting.
A: 30/35 grit provides aggressive cutting performance and faster material removal, ideal for cast iron, reinforced concrete, and heavy-duty applications.
60/70 grit delivers smoother cuts with less chipping, making it suitable for ceramics, acrylic, plastics, and materials requiring a cleaner finish.
A: No. The vacuum brazed design provides high diamond exposure and low cutting resistance, while the steel core helps dissipate heat effectively.
It reduces heat buildup, preventing melting, sticking, and edge burning during cutting.
A: Yes, we encourage you to test our quality! Sample pieces are provided for free. You only need to cover the shipping cost. This allows you to evaluate our products with minimal risk before committing to a bulk order.
A: Our standard MOQ is very flexible, starting from 100 pieces for most items. We understand the need for testing the market, and we are happy to support smaller initial orders to build our partnership.
A: Absolutely! We welcome OEM and ODM orders. We can apply your logo using methods like laser engraving or printing, and customize the packaging to your specifications. Let’s discuss your branding needs.
A: For standard products, the typical production time is 15-25 working days. For larger custom orders, it may take 25-45 working days. We will always provide a confirmed timeline with your order confirmation to ensure timely planning.
A: We offer flexible payment terms to suit your needs, including T/T (Bank Transfer), L/C (Letter of Credit), PayPal and so on. A deposit is typically required to start production, with the balance paid before shipment.
A: Quality is our priority. We implement strict quality control at every stage, from raw material inspection to final product testing. Our ISO9001 certification is a testament to our commitment to consistent quality. We also hold CE and MPA certifications for relevant products.
A: We stand behind our products. If you receive any defective items, please contact us immediately with photos or videos. We will investigate and provide a solution, which may include replacement or refund, as per our warranty policy.
A: We have extensive experience in international shipping and can arrange door-to-door delivery for your convenience. We work with reliable freight forwarders and will suggest the most cost-effective and efficient shipping method (by sea, by air, or by express courier like DHL/UPS) for your order.
A: Shipping time varies by method:
- Express (e.g., DHL/UPS):5-7 days.
- Air Freight:8-12 days.
- Sea Freight:30-45 days.
We will confirm the exact estimated time when you place your order.
